The rotary forming machine, receiving the rope from the upstream rope sizer, cuts it continuously in equal portions and, by compressing them inside a specially-designed forming chamber, makes individual candy/gums, giving the desired shape and weight. Rotary technology is the most flexible solution, achieving seamless and small shapes, all with improved cosmetic quality. Executive provides a wide range of forming machines, from small production or laboratory to high capacity.
TECHNICAL FEATURES
Four different sizes of rotary forming lines can be selected depending
on product types and production needs: from small or laboratory output
to
high-capacity volume.
Range of capacity from 300 Kg/h up to 1600 Kg/h depending on line size and configuration
Rope speed from 30 up to 160 m/min depending on line size and configuration

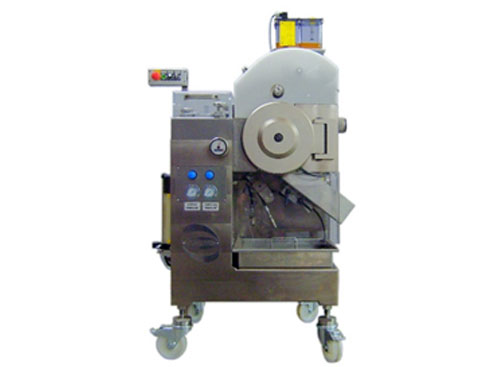

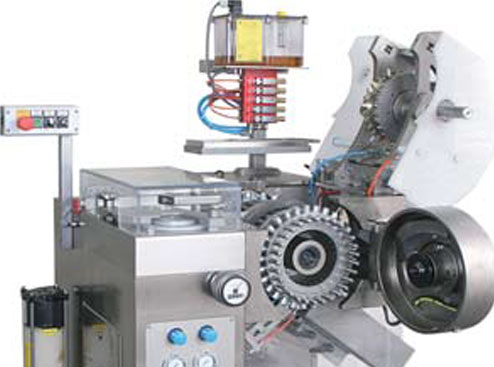

Mod.256-EXEC - MINIFLEX
MAIN FEATURES
Food grade stainless steel design
Rope speed: up to 30 m/min
Treated Steel frame
oil-fog
Manual front opening.
Infeed sizing rollers synchronized in speed with the die-set for rope final adjustment.
Long-lasting hardened forming cams and rollers
Accurate forming pressure adjustment.
Product thickness adjustment
Product release chute
Safety cover and guards
UPGRADES
Product lubrication unit
Oil-fog aspirator
Pharma standards

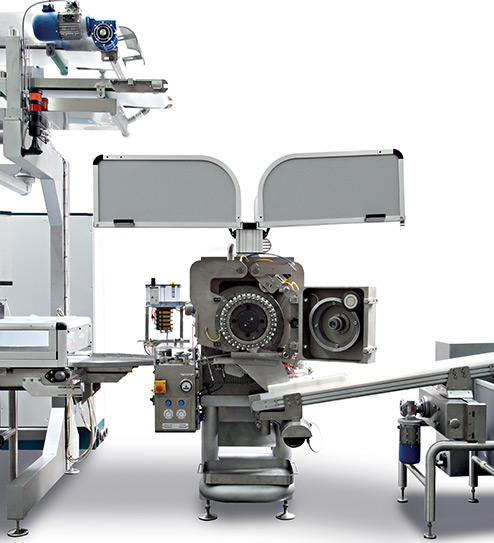

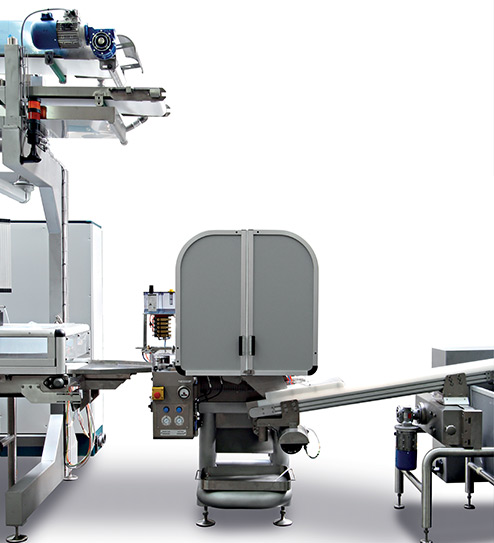

Mod.114-EXEC
MAIN FEATURES
Food grade stainless steel design
Rope speed: up to 110 m/min
Stainless steel frame
Supporting shoulders
Manual cover opening
Infeed sizing rollers for rope final adjustment
Long-lasting hardened forming cams and rollers
Accurate forming pressure adjustment.
Product thickness adjustment
Safety guard
Patented free-pressure roller for extended forming dwell time and avoiding plungers overheating
Safety feature to prevent the machine start up until all parts are correctly fitted and assembled.
Centralised mechanical parts lubrication
Cooling system for calibrators and die-set
UPGRADES
Product lubrication unit
Oil-fog aspirator
Small-candy upgrade kit
Cube and pillow candy upgrade kit
Pharma standards

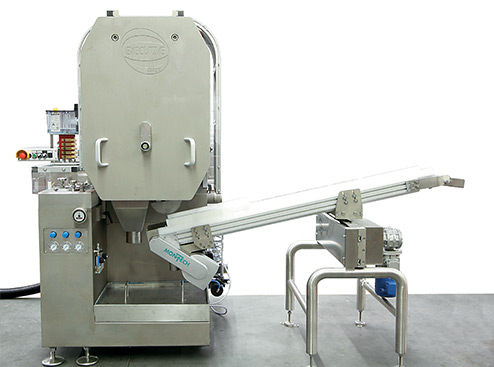

Distribution belt for candy delivery on the downstream cooling tunnel complete with:
Food grade transfer belt
Adjustable Swinging motion system
Reject chute (optional)

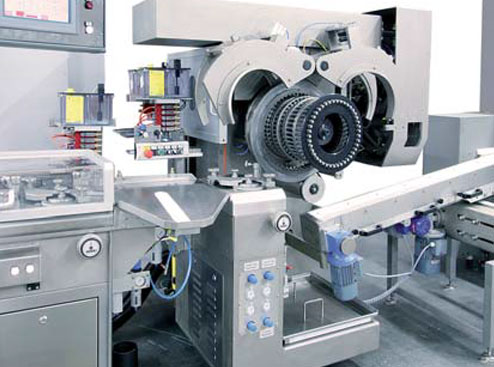

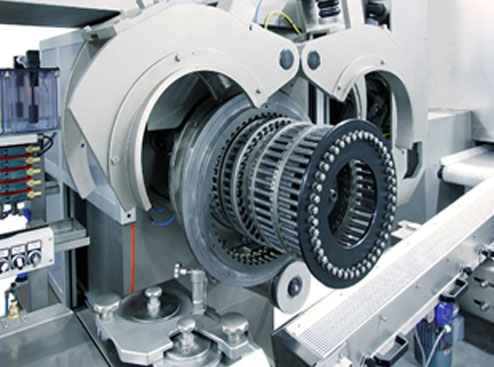

MOD. 195-EXEC
MAIN FEATURES
Rope speed: up to 130 m/min
Treated Steel frame
Powered front opening.
Powered Supporting shoulders
Infeed sizing rollers synchronized in speed with the die-set for rope final adjustment.
Long-lasting hardened forming cams and rollers
Accurate forming pressure adjustment.
Product thickness adjustment
Patented free-pressure rollers for extended forming dwell time and avoiding plungers overheating.
Safety feature to prevent the machine start up until all parts are correctly fitted and assembled.
Centralised mechanical parts lubrication
Cooling system for calibrators and die-set
Safety cover and guards
UPGRADES
Stainless steel frame
Product lubrication unit
Oil-fog aspirator
Small-candy upgrade kit
Cube and pillow candy upgrade kit
Pharma standards
Distribution belt for candy delivery on the downstream cooling tunnel complete with:
Food grade transfer belt
Adjustable Swinging motion system
Reject chute (optional)

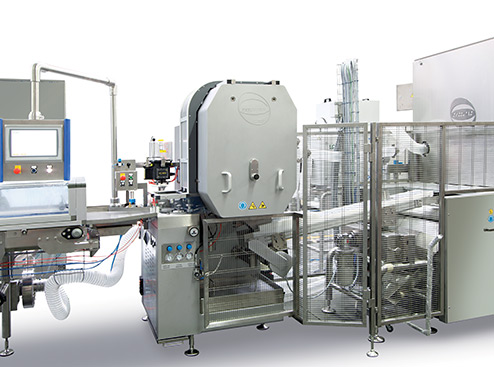

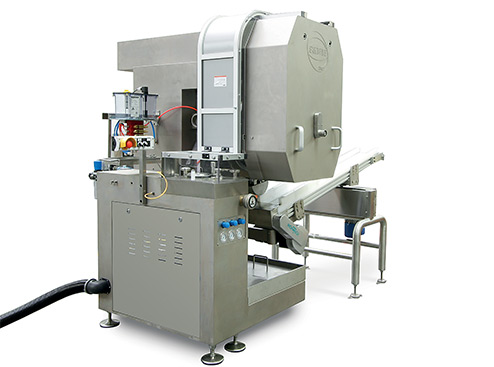

Mod.239-EXEC - FLEXI
MAIN FEATURES
Infeed sizing rollers for rope final adjustment
Rope speed: up to 160 m/min
High efficiency, durability and flexibility
Hygienic design
Low maintenance requirements
User friendly
Possibility to use any existing rotary die-set
Servo-driven speed adjustment
Reduced scraps rate
Panted applications to achieve product forming, to reduce mechanical frictions and to improve die life
Machinery interface and interconnection to achieve a consistent tine speed synchronization
Recipes and parameters control and storage by PLC
UPGRADE
Product lubrication unit
Oil-fog aspirator
Small-candy upgrade kit
Cube and pillow candy upgrade kit
Pharma standards
Distribution belt for candy delivery on the downstream cooling tunnel complete with:
Food grade transfer belt
Adjustable Swinging motion system
Reject chute (optional)
TECHNICAL DATA
MOD. 114-EXEC
Rope Speed : Up to 110 m/min
OUTPUT
Based On A Typical Candy Weight Of Approx 4 Gr And With A Length Of 24 Mm.: Up to 700 Kg/hr
Type Of Die-Set: Mod. 125-EXEC and Mod. 125-EXEC.spec
Drive: 2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Optional
Cooling: N.A.
Lubrication: Depending on application
Die Car (Trolley): Yes
MOD. 195-EXEC
Rope Speed : Up to 130 m/min
OUTPUT
Based on a typical candy weight of approx 4 gr and with a length of 24 Mm.: up to 1200 Kg/hr
Type Of Die-Set: Mod. 125-EXEC and Mod. 125-EXEC.spec
Drive: 2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Yes
Cooling: Yes
Lubrication: Depending on application
Die Car (Trolley): Yes
MOD. 239-EXEC
Rope Speed : Up to 160 m/min
OUTPUT
Based On A Typical Candy Weight Of Approx 4 Gr And With A Length Of 24 Mm.: Up to 1600 Kg/hr
Type Of Die-Set: Mod. 137-EXEC, Mod. 125.00 and Mod. 125-EXEC.spec
Drive: 2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Yes
Cooling: Yes
Lubrication: Depending on application
Die Car (Trolley): Yes
MOD. 256
Rope Speed : Up to 30 m/min.
OUTPUT
Based On A Typical Candy Weight Of Approx 4 Gr And With A Length Of 24 Mm.: Up to 300 Kg/hr
Type of die-set: Mod. 255-EXEC
Drive: 2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Optional
Cooling: Yes
Lubrication: Depending on application
Die Car (Trolley): Yes
