ROTARY DIE-SETS

Die sets are assembled on the forming machine as format parts and they are the tools where the candy takes shape. They are specifically designed according to customer desired candy and specifications. All parts in contact with product are food grade and hardened for long-lasting operations.
Rotary die-sets are interchangeable and can be assembled on different type of rotary formers on the market.

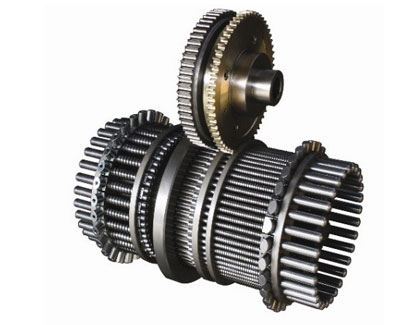

MOD. 125-EXEC. & 125.spec-EXEC.

APPLICATION Hard candies (solid and filled)
Toffees and chewy candy (solid and filled)
Gum (solid and filled)

TECHNICAL FEATURES Central Hub to fit the die into the      Rotary      Forming
Individual Flange for long-plungers       and short-      plungers
Abrasion resistant Forming Crown
Cutting Crown/Ring
Long and short plungers

OPTIONAL Special profile cutting ring/crown
Construction for small product      shapes below 2      gr weight

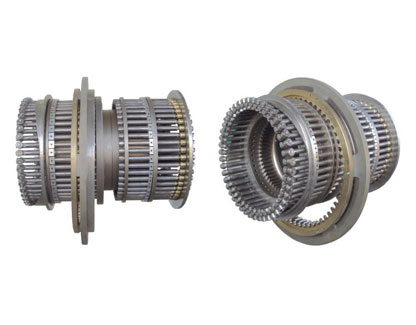

MOD. 137-EXEC.

APPLICATION Hard candies (solid and filled)
Toffees and chewy candy (solid and      filled)
Gum (solid and filled).

TECHNICAL FEATURES Specially-designed for high speed      operations.
Sturdy construction with hardened      first quality      materials.
Swash plate
Cutting Crown/Ring
Plungers complete with floating joint
Forming cam
Plungers with bearings

OPTIONAL Special profile cutting ring/crown
Construction for small product      shapes below 2      gr weight

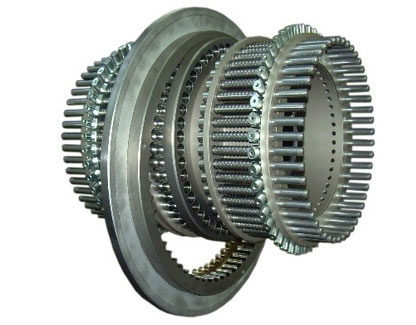

Mod. 255-EXEC.

APPLICATION Hard candies (solid and filled)
Toffees and chewy candy (solid and      filled)
Gum (solid and filled)

TECHNICAL FEATURES Specially-designed for lab and small
            production scale production
Sturdy construction with hardened      first quality      materials
Die forming diameter 200mm

OPTIONAL Construction for small product      shapes below 2      gr weight
