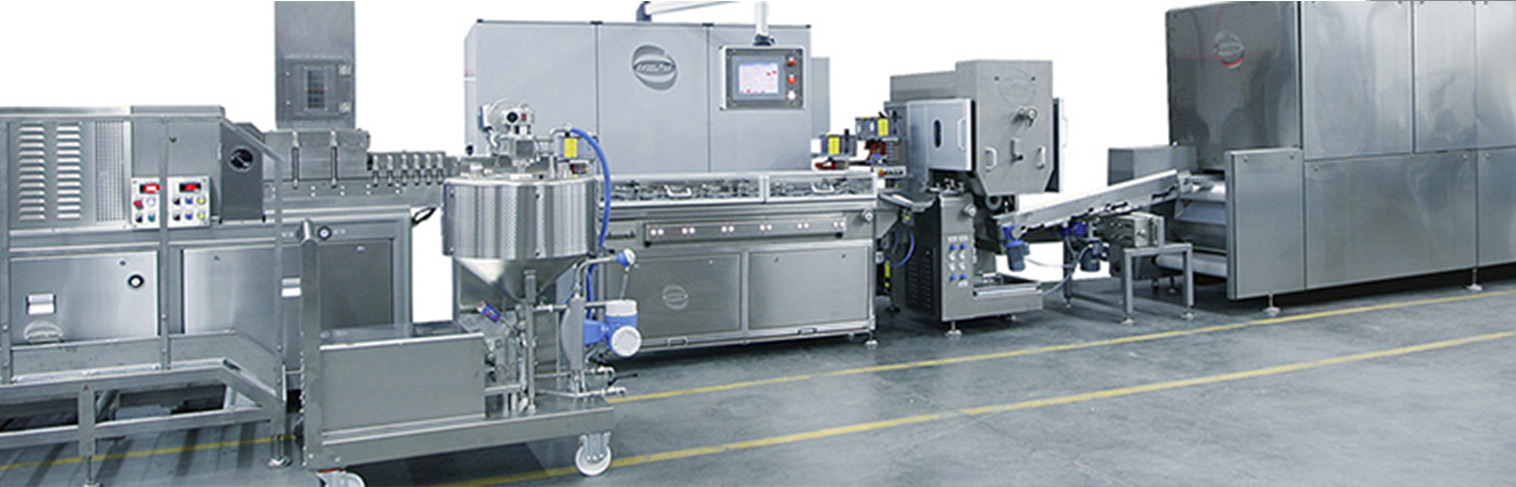

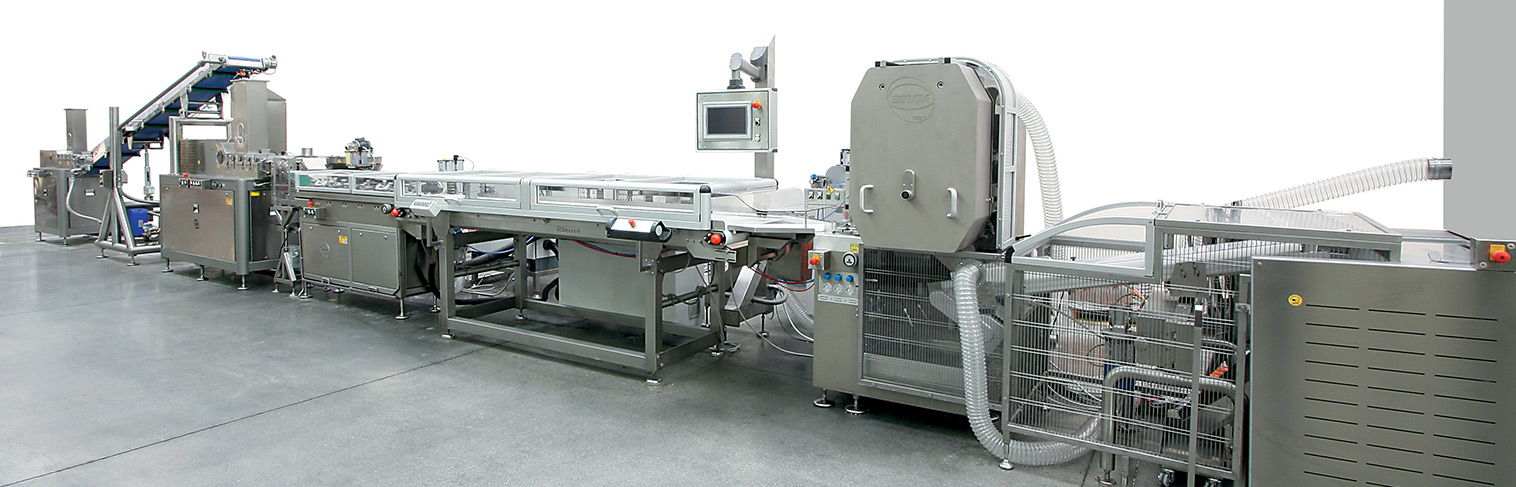

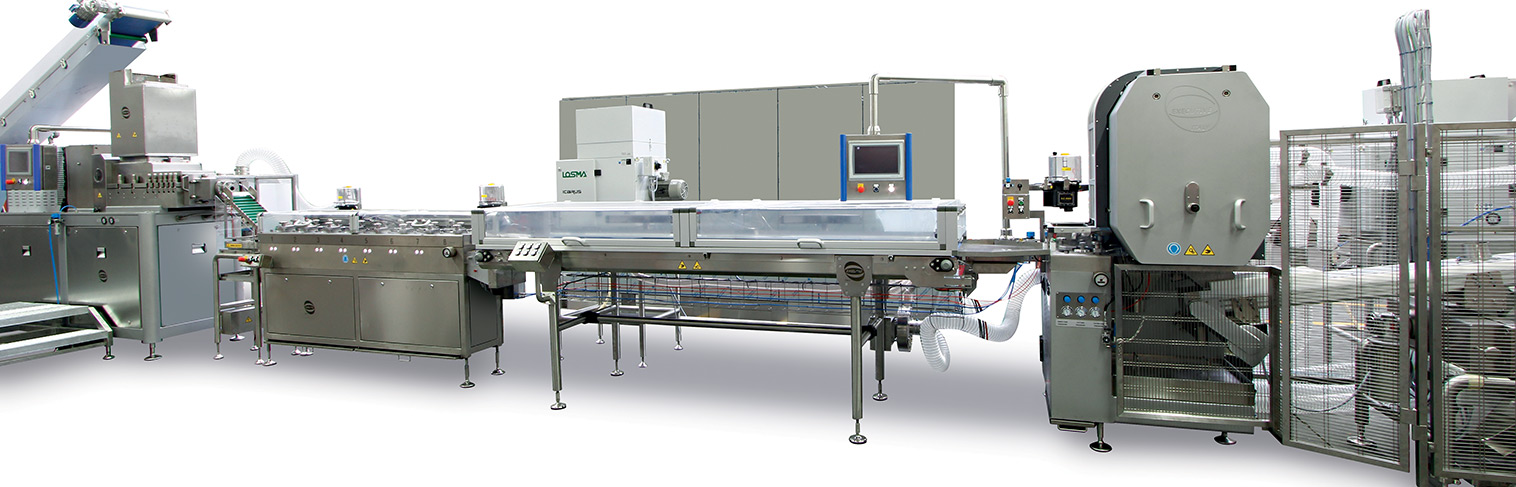

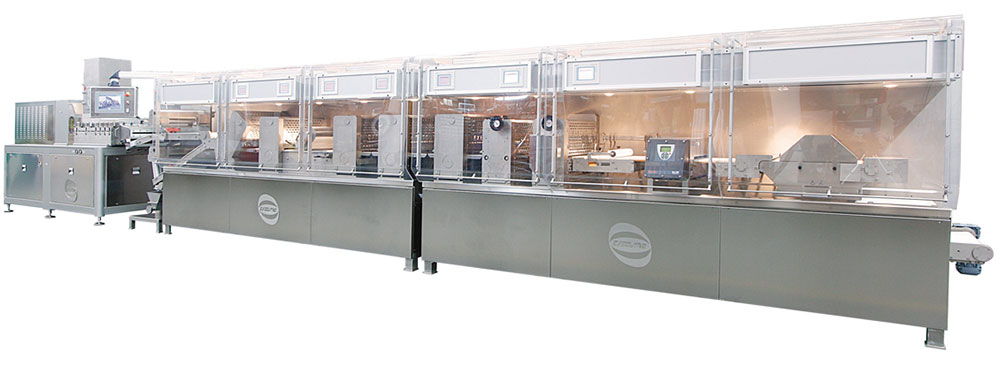

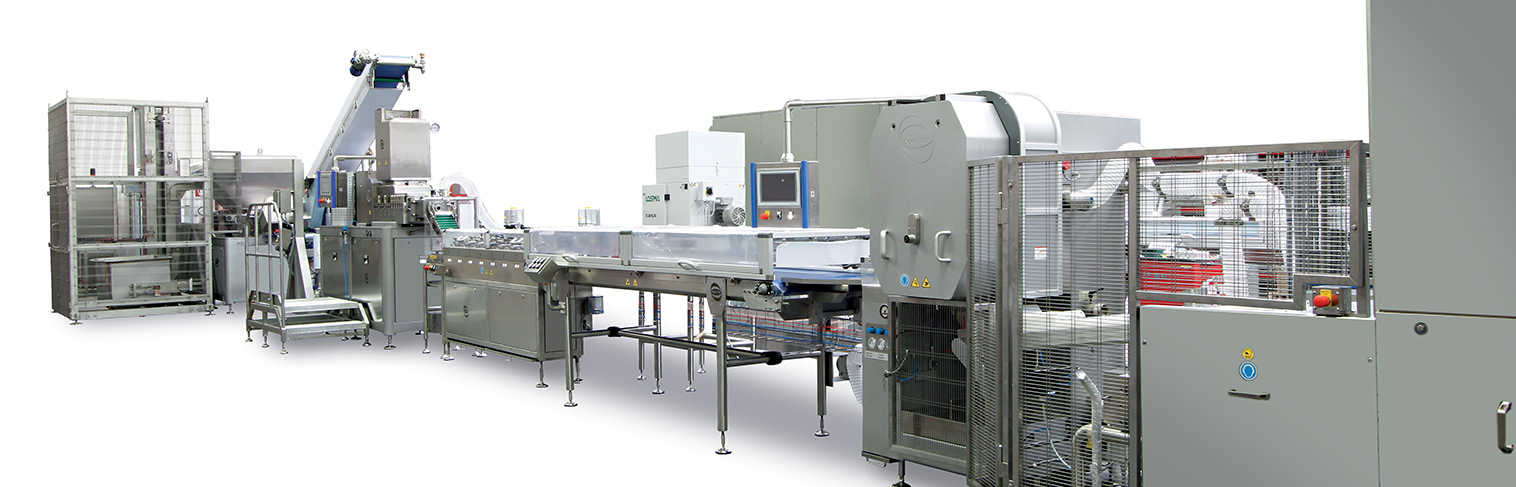

The extrusion and forming lines are suitable for the production of die-formed gum pieces with any shape (unfilled, filled with liquid or powders or paste) from round/oval to squared and odd shapes, including pillow, pellet-type, crimped and cube.
Lines include extrusion or co-extrusion technology, to give extra line flexibility, rope sizing and state-of-the-art rotary forming technology for the best cosmetic quality of your product using Executive patented solutions.
Configurations may include intermediate relaxation belt, specials cams and dies as well as different cooling systems depending on final production targets.
APPLICATION
Any type of Gum and Bubble Gum
With or without filling
Sugar
Sugar-free
TECHNICAL FEATURES
Four different sizes of rotary forming lines can be selected depending on
product types and production needs: from small or laboratory output to high capacity volume.
All Process parameters are monitored and controlled for gum shape and
weight accurate control, including:
Gum feeding
Temperatures
Rope cross-section
Rope speed
Forming pressure
Nitrogen-free and talc-free technology
Extended forming dwell time
Special cams and die-sets upgrades for filled gum handling
Dedicated tooling for sticky products easy release/discharge
Range of capacity from 300 Kg/h up to 1600 Kg/h depending on line size and configuration
Rope speed from 30 up to 160 m/min depending on line size and configuration
LAB LINE – MINI-FLEX (256-EXEC – rotary former)
Rope speed: up to 30 m/min
DELTA JUNIOR (114.00-EXEC - rotary former)
Rope speed: up to 110 m/min
DELTA LINE (195-EXEC - rotary former)
Rope speed: up to 130 m/min
FLEXI LINE (239-EXEC - rotary former)
Rope speed: up to 160 m/min

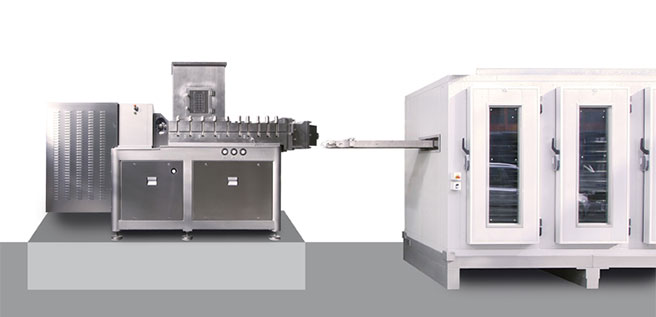

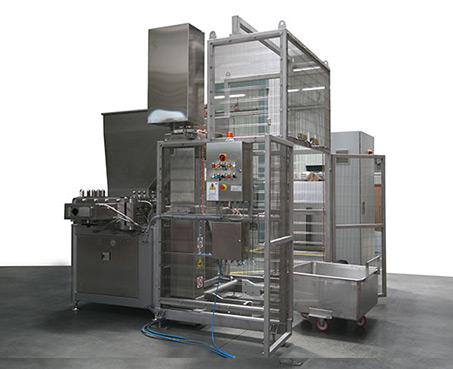

Filled gum: extruder or co-extruder with liquid or powder filling units.

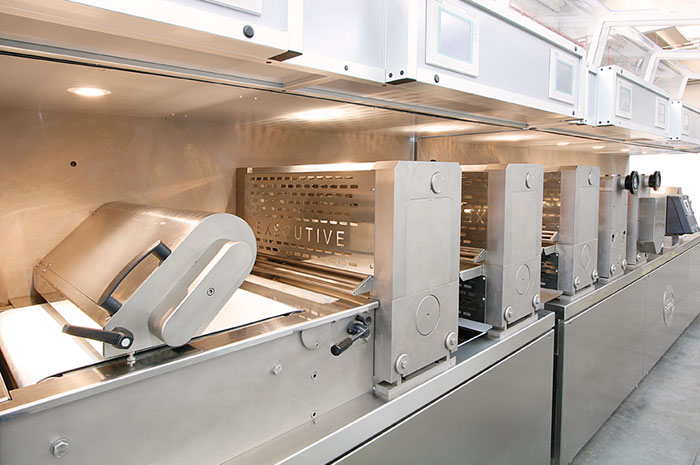

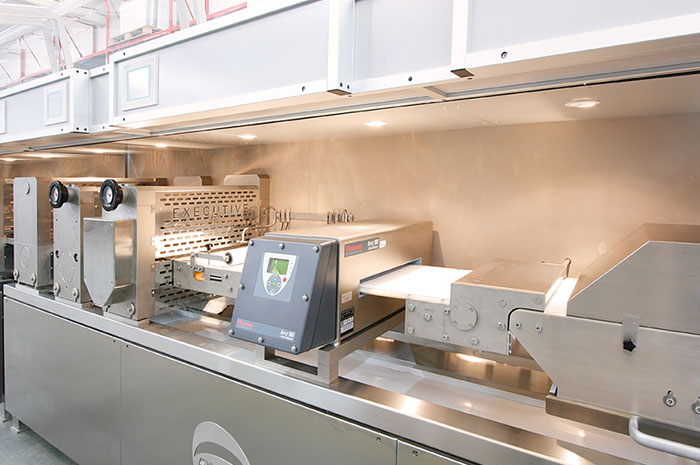

Rope sizer featuring up to 8 horizontal sizing stages, combined with a relaxation belt configuration for improved gum stability, to provide a consistent rope section.

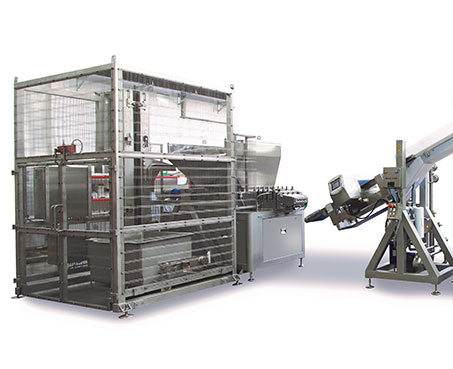

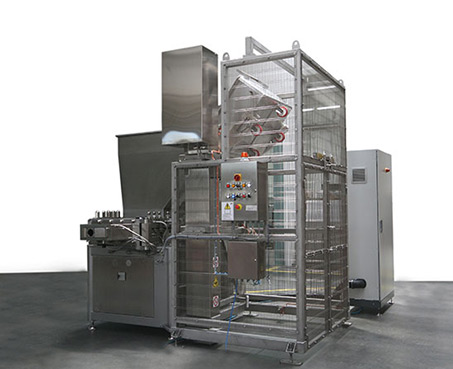

Forming equipment featuring: patented applications to achieve the best product forming, reinforced sealing, reduced mechanical frictions, improved die life.

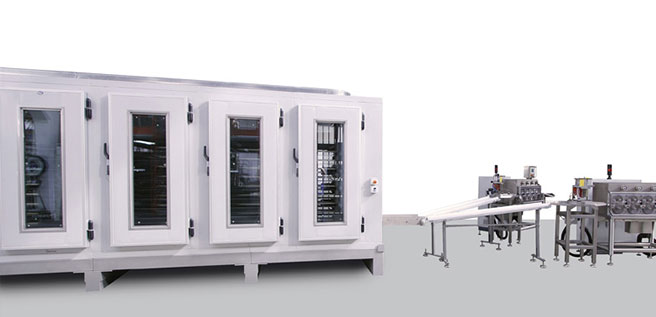

Cooling tunnel with temperature and humidity control, independent air and belts speed adjustments.
High efficiency, durability and flexibility
Hygienic design
Low maintenance requirements
User friendly
Possibility to use any existing rotary die-set
Constant and self re-adjustment of the line speed and processing values
Servo-driven speed adjustment
Reduced scraps rate
Panted applications are implemented to achieve the product forming, to reduce mechanical frictions and to improve die life
Machinery interface and interconnection to achieve a consistent line speed synchronization
Recipes and parameters control and storage by PLC
OPTIONAL
Pre-extrusion and stabilizing belts
Automatic pre-extruder loading
Any type of filling pump to be connected to the extruder or co-extruder
Additional dedicated set of forming cams depending upon type of finished product
Talc units
Relaxation belt for improved product stability
