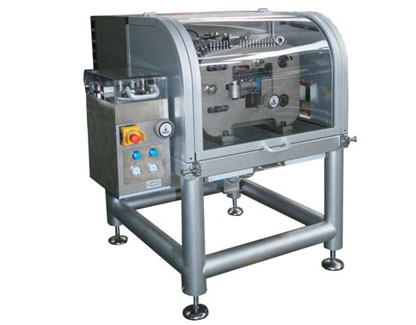

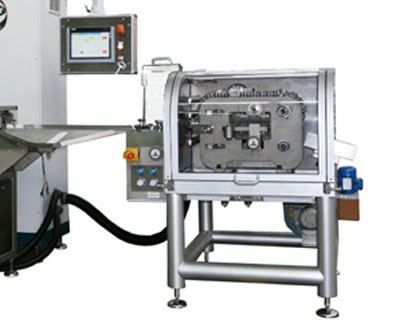

The chain forming machine, receiving the rope from the upstream rope sizer,
cuts it in equal portions and, by compressing them inside a forming chamber,
forms each individual candy, giving the desired shape and weight. Chain
technology is the most suitable solution for high filling rates when it
comes to hard candy process. Executive provides two chain forming machines
configuration for medium to high speed productions.
Chain forming technology is not recommendable for gum production.
APPLICATION
Hard candies (solid and highly filled)
Toffees and chewy candy (solid and filled)
TECHNICAL FEATURES
The chain forming lines are available in two production sizes depending on the final required output.
Range of capacity from 300 Kg/h up to 1800 Kg/h depending on line configuration and product shape/weight.
High efficiency, durability and flexibility
Hygienic design
Stainless steel execution of all equipment
Low maintenance, cleaning and operation friendly
Constant and self re-adjustment of the line speed and processing values
Servo-driven speed adjustment
Panted applications are implemented to achieve the product forming, to reduce mechanical frictions and to improve die life
Machinery interface and interconnection to achieve a consistent line speed synchronization
Recipes and parameters control and storage by PLC
OPTIONAL
Pharma construction
TECHNICAL DATA
MOD. 242-EXEC
Type Of Die-Set: MOD. 198-EXEC and MOD. 209-EXEC
Rope Speed: Up to 180 m/min. Or up to 110 m/min. depending on die-set type
OUTPUT (based on a typical andy weight of approx 4gr and
with a length of 24mm.):
Up to 1800 kg/h (Die Mod. 198-EXEC) – up to 700 (Die Mod. 209.06-EXEC)
Drive: n.2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Yes
Lubrication: Depending on application
Die Car (Trolley):Yes
MOD. 242.03
Type Of Die-Set: MOD. 198-EXEC and MOD. 209.06-EXEC
Rope Speed: Up to 180 m/min Or up to 110 m/min. depending on die-set type
OUTPUT (based on a typical andy weight of approx 4gr and
with a length of 24mm.):
Up to 1800 kg/h (Die Mod. 198-EXEC) – up to 700 (Die Mod. 209.06-EXEC)
Drive: n.2 servo drives
Temperature Control: Electrical heaters
Dedicated Fan: Yes
Lubrication: Depending on application
Die Car (Trolley):Yes
