Machine type

FILLING PUMPS

A wide range of filling pumps implementing the latest technology available on the market to allow achieving the highest filling rate possible and the best centering of the filling inside the candies. All pumps feature a stainless steel food grade design for hygiene and long-lasting operations. Pumps are available for all kind of need, from very viscous products up to powder and liquids and different capacities. Pumps integrated on our lines are controlled by PLC for parameter and operation control. Customized solutions are also available to answer specific product and process.

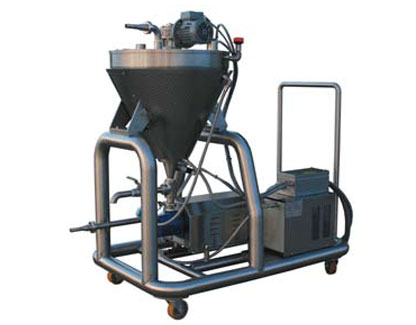

LIQUID FILLING PUMP MOD. 273-EXEC.

APPLICATION All type of liquid, semi-liquid, syrup and cream filling solutions

TECHNICAL FEATURES Food grade stainless steel made-design
Easy maintenance and cleaning
Temperature and flow controls
Volumetric pump unit with heated head
Filling tube for connection to batch roller or extruder
Easy relocation
Powered stirrer

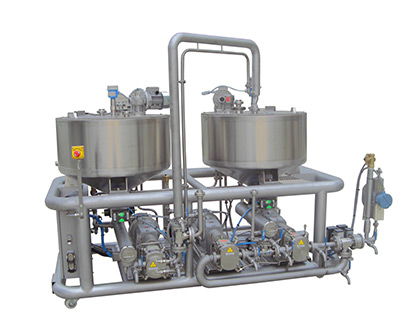

OPTIONAL Dual filling pump for special application
Mass flow meter
Heated filling pipe for special type of applications

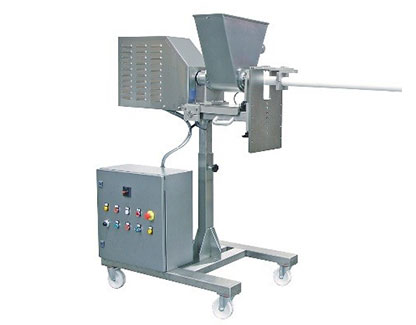

POWDER FILLING PUMP MOD. 197-EXEC.

APPLICATION Powders, sparkling powders, granulates
Equipment to be connected to any type of Batch Roller

TECHNICAL FEATURES Food grade stainless steel made-design
Easy maintenance and cleaning
Tilting hopper
Product feeding screw through a TEFLON coated filling pipe.
Auto-levelling cylinder to adjust the pump height to the batch rollers inclination

OPTIONAL Vibrating unit
Double-jacketed pipe

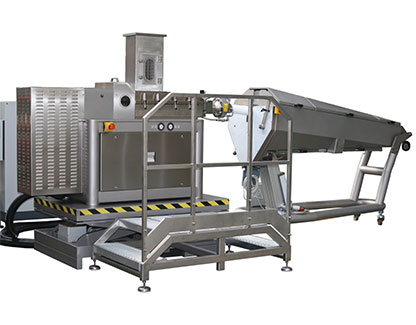

EXTRUSION PUMP MOD 233-EXEC

APPLICATION High viscous filling masses
Equipment to be connected to any type of Batch Roller

TECHNICAL FEATURES Accurate and independent temperature control of both chamber and die-head
Direct drive technology
Solid and robust design with all parts in contact with the product made of stainless steel
Hygienic design with fully openable chamber and die-head by hydraulic system for safe easy cleaning and maintenance
TEFLON coated filling pipe complete with ball joint
Hydraulic platform for auto-height adjustment to the batch roller inclination

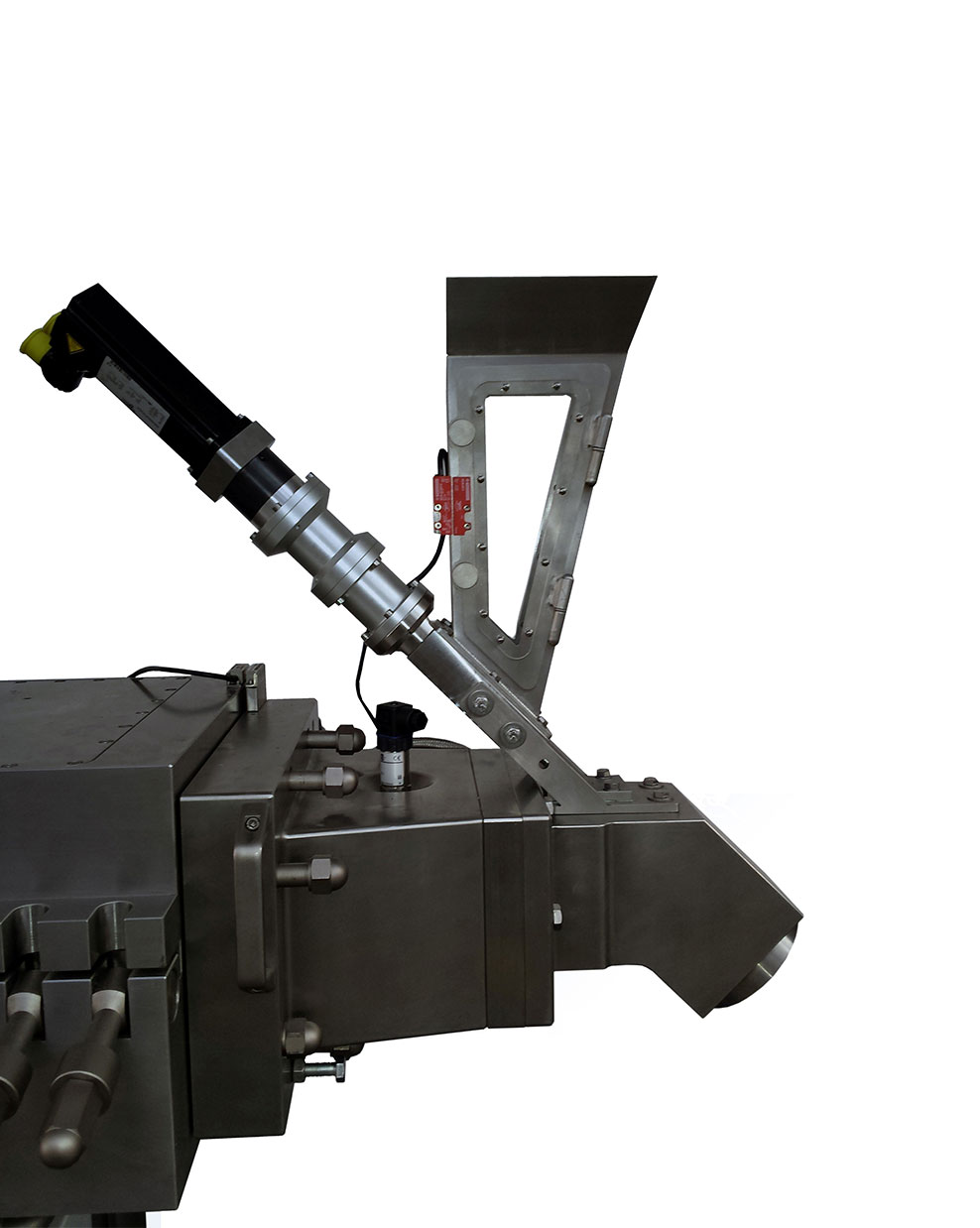

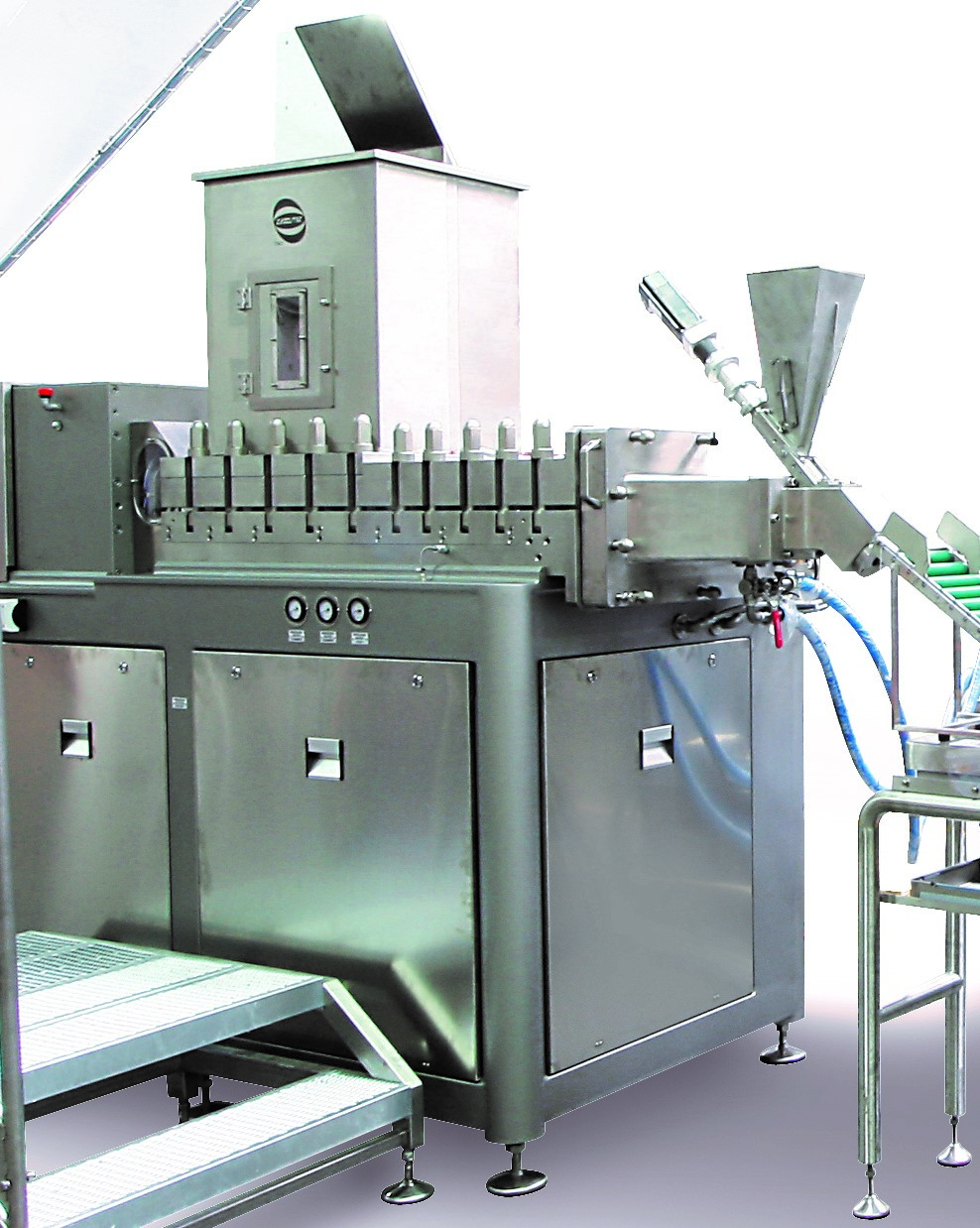

POWDER FILLING PUMP Mod. 244-EXEC

APPLICATION Suitable for Extruder.
Powders, sparkling powders and granulates

TECHNICAL FEATURES Food grade stainless steel made design.
Directly integrated onto the Extruder head.
Easy maintenance and cleaning

OPTIONAL Automatic, continuous, accurate loading.
