Machine type

CHAIN DIE-SET

Die sets are assembled on the forming machine as format parts and they are the tools where the candy takes shape. They are specifically designed according to customer desired candy and specifications. All parts in contact with product are food grade and hardened for long-lasting operations.

Chain die-sets are interchangeable and can be assembled on different type of chain formers on the market with a dedicated fitting tool.

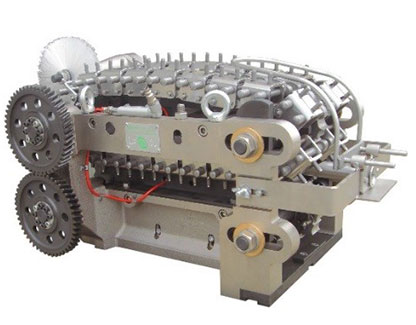

MOD. 198-EXEC. (HIGH PRODUCTION RATE)

APPLICATION Hard candies (solid and highly filled)
Toffees and chewy candy (solid and filled)

TECHNICAL FEATURES Chain total length: 1250 mm
Robust assembly frame for gears and plungers-chain support
Hardened Steel motion transmission filled) gears
Treated steel pressure and forming filled) cams
Special alloyed steel forming chains
Steel plungers complete with ball- filled) bearings
Accurate forming pressure filled) adjustment
Product easy release feature
Product thickness adjustment by filled) hand-wheel

OPTIONAL Construction for small product shapes below 2 gr weight

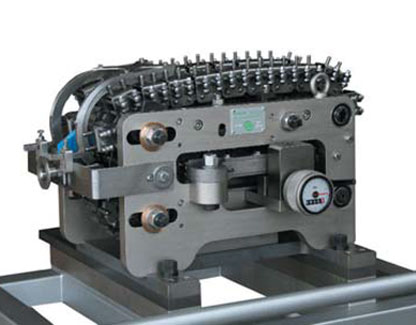

MOD. 209.06-EXEC. (MEDIUM PRODUCTION RATE)

APPLICATION Hard candies (solid and highly filled)
Toffees and chewy candy (solid and filled)

TECHNICAL FEATURES Chain total length: 1000 mm.
Robust assembly frame for gears and plungers-chain support
Hardened Steel motion transmission gears
Treated steel pressure and forming cams
Special alloyed steel forming chains
Steel plungers complete with ball-bearings
Accurate forming pressure adjustment
Product easy release feature
Product thickness adjustment by hand-wheel

OPTIONAL Construction for small product shapes below 2 gr weight

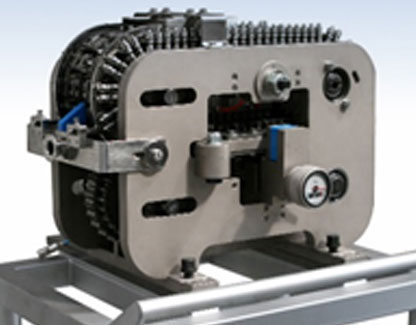

MOD. 209-EXEC. (TRADITIONAL CHAIN DIE-SET)

APPLICATION Hard candies (solid and highly filled)
Toffees and chewy candy (solid and filled)
Suitable for traditional chain forming machines

TECHNICAL FEATURES Robust assembly frame for gears and plungers-chain support
Hardened Steel motion transmission gears
Special alloyed steel forming chains
Steel plungers
Product easy release feature

OPTIONAL Construction for small product shapes below 2 gr weight
Dedicated fitting tool: special support complete with pressure later chains to lodge the die-set onto the Chain Forming smachine Mod. 242-EXEC.
